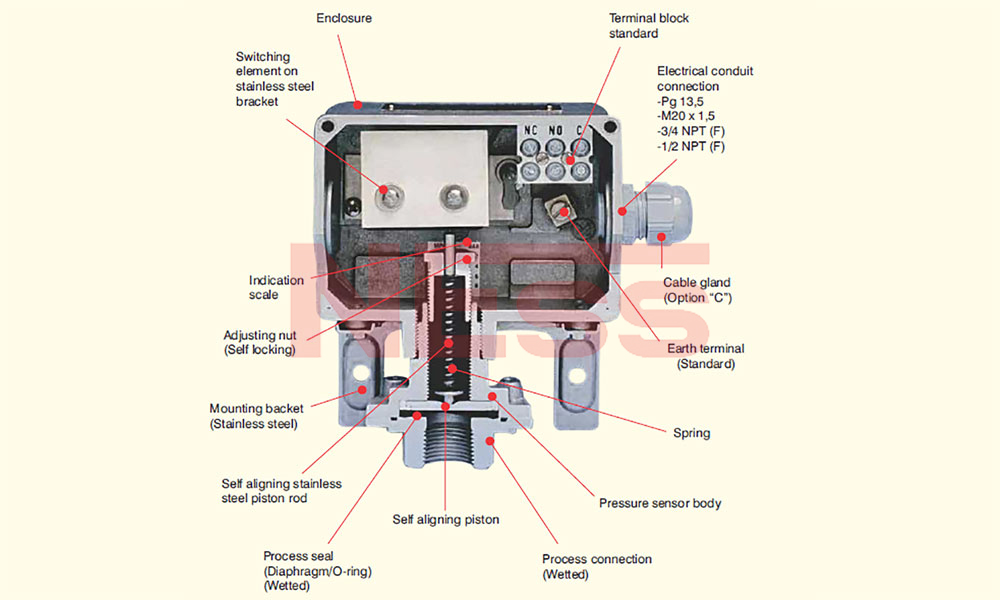

FLAMEPROOF PRESSURE SWITCH - PS01

PRESSURE / DIFFERENTIAL SWITCH (SPRING LOADED)
Enclosure Weather tight (IP65 / Ip66), Explosion Proof (IP66)
Enclosure Material Aluminum, AISI 316 SS
Range 2mbar to 5400mbar & 0.3kg/cm² to 350kg/cm², Vacuum
Process Connection 1/4", 1/2" - NPT, BSP, G
Material of Construction Brass, Aluminum, AISI 316 SS, Monel
Diaphragm Buna N, EPDM, Viton A, Kalrez, Monel, Neoprene, PTFE, AISI 316 SS, Tantalum
O Ring Buna N, EPDM, Viton A, PTFE, Neoprene, Kalrez
Switch Element Gold Contact, Silver Contact, Explosion Proof, Manual Reset, Adjustable dead bend, pneumatic
Option Cable Gland - Explosion Proof, Epoxy Coating of Switch, Tag Plate

Download Send Enquiry

Applications

  • Oil & Gas Industries
  • Chemical, Petrochemical & fertilizers Industries
  • Cement & power Plant
  • Marine Applications
  • Steel & textile Industries
