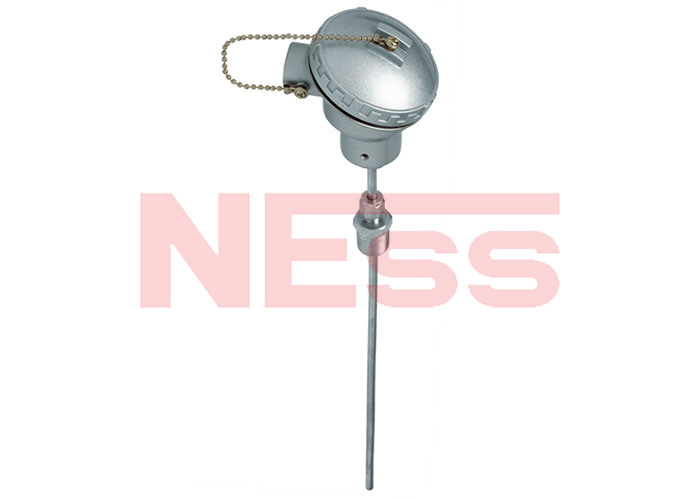

RESISTANCE TEMPERATURE DETECTOR THREADED CONNECTION - MODEL RTD02

RTD02 (Fixed threaded / Adjustable threaded)
Sensor Pt-100
No. Of Element Simplex/Duplex
Head Extension type Fixed threaded / Adjustable threaded
Wire Configuration 3 Wires
Range -200°C up to 400°C
Accuracy Class “B” As per IEC - 751 / DIN - 43760
Sheath Diameter 6 mm, 4.5mm, 3mm, 8mm
Sheath Material AISI 316 SS
Enclosure Protection IP 65/Flame Proof/Explosion proof
Enclosure Material Die-cast Aluminum/ AISI 304 SS
Process Connection Size 1/2”, 3/4”, 3/8”, M20
Process Connection Type NPT, BSP, G, R, Metric etc
Options ATEX, CSA & FM (Enclosure)
With Thermowell
With Cable Gland

Download Send Enquiry

Applications

  • Oil & Gas Industries
  • Chemical & Petrochemical Industries
  • Water & Waste-water Treatment
  • Power & Utilities
